Surge Protection Device


10KV PC-SD30-4   30KV PC-SD30-5

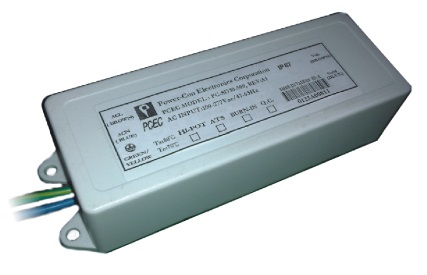

Surge Protection Device 30KV PC-SD30-5 Series

Features

Ø Standards: Long lifetime, robust protection against moisture, vibration and temperature extremes.

Ø Universal AC input / Full range up to 305Vrms.

Ø Resistant to peaks and surges of up to 5KA / 30KV.

Ø Full encapsulated with IP 67 Level.

Ø Suitable for class I and Class I I luminaries.

Applications

Ø Tunnels

Ø Highways

Ø Rural roads

Ø Parking lots

Ø Area lighting

Specifications

Operating voltage

277VAC 50/60Hz

MCOV (max. continuous operating voltage)

320Vrms

UC (max. continuous operating voltage)

320Vrms

VPR (voltage protection rating)

560VDC(L-N) ; 3470VAC(L-FG,N-FG)

UP (voltage protection rating)

560VDC(L-N) ; 3470VAC(L-PE,N-PE)

IN (nominal discharge current)

5KA

Max. surge voltage(2/50us)

30KV

Max. surge current(8/20us)

15KA

Response time

<25ns

Withstand

1600VAC 1minutes

Operating temperature

40~+70

Safety standards

Refer to UL1449 3rd edition (Type 2 component assemblies), EN61643-11

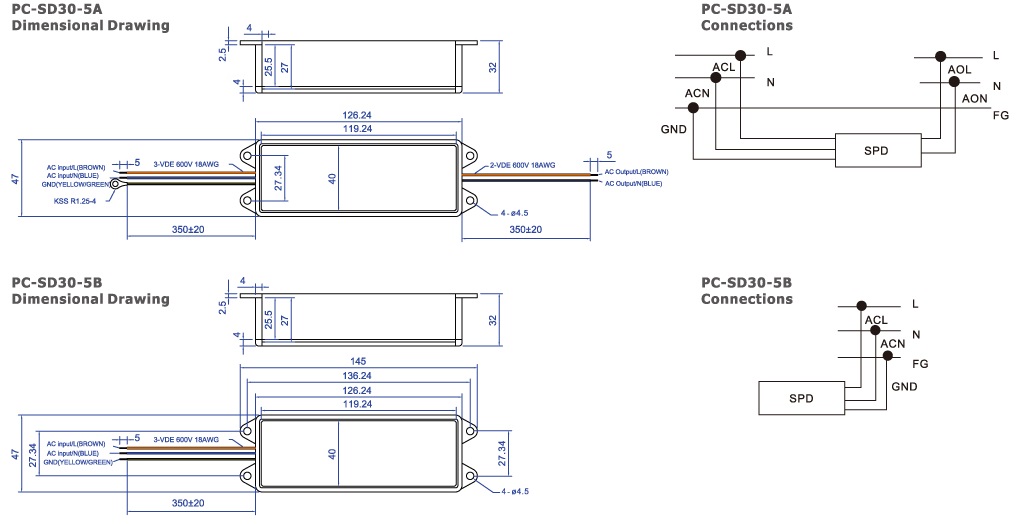

Dimension

145*40*32mm Tolerance ±0.4mm

Packing

300 gram
