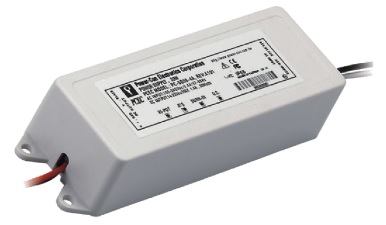

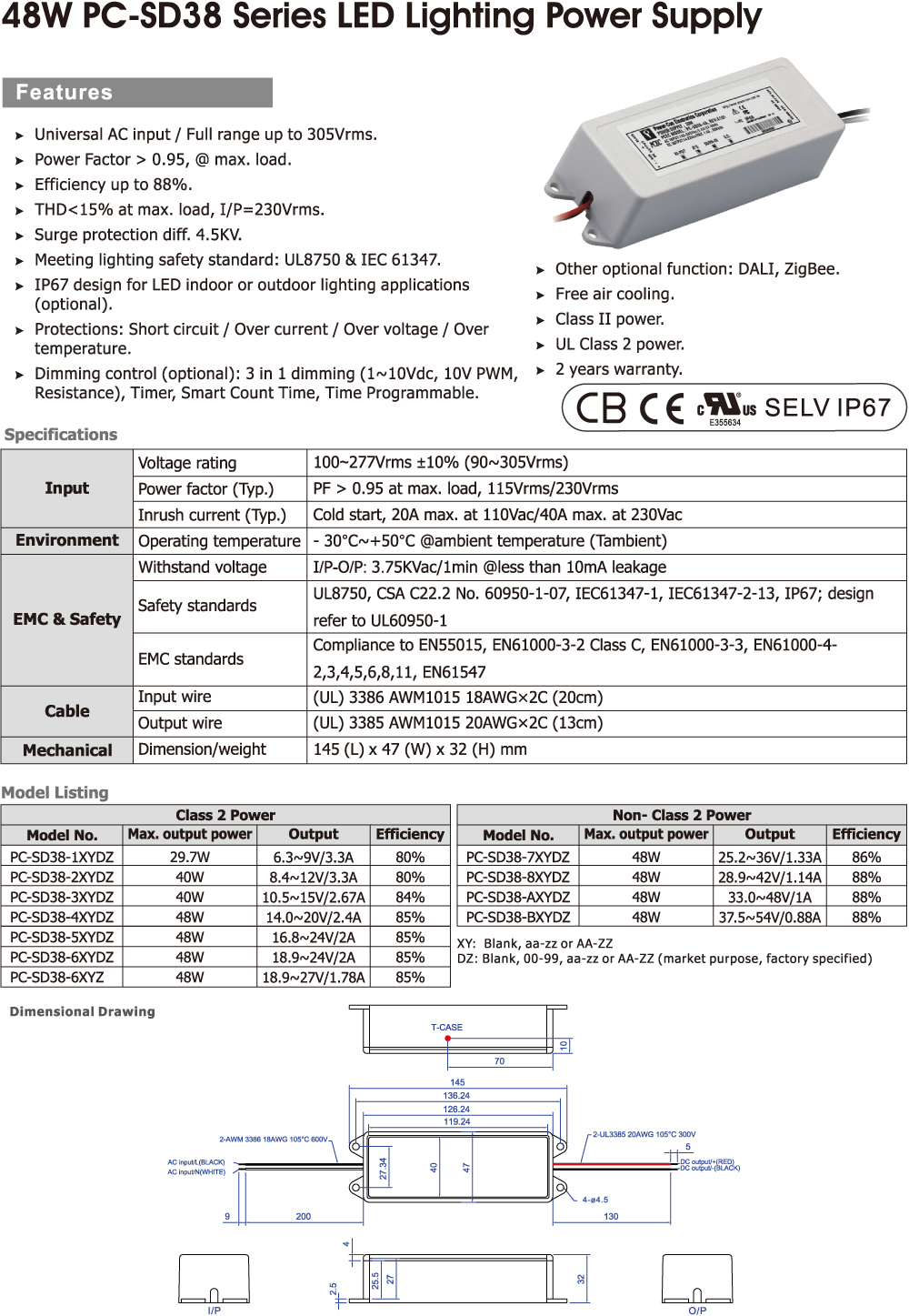

48W PC-SD38 Series LED Lighting Power Supply

Ø   Universal AC input / Full range up to 305Vrms.

Ø   Power Factor > 0.95 (@ max. load.)

Ø   Efficiency up to 88%.

Ø   THD<15% at max. load, I/P=230Vrms.

Ø   Surge protection diff. 4.5KV.

 Ø   Other optional function: DALI.ZigBee

Ø   Meeting lighting safety standard: UL8750 & IEC 61347.

Ø   Free air cooling.

Ø IP67 design for LED indoor or outdoor lighting applications(optional).

Ø   Class II power.

Ø   Protections: Short circuit / Over current / Over voltage / Over temperature.

Ø   UL Class 2 power.

Ø   Dimming control (optional): 3 in 1 dimming (1~10Vdc, 10V PWM, Resistance), Timer, Smart Count Time, Time Programmable.

Ø   2 years warranty.

Specifications

Input

Voltage rating

100~277Vrms ± 10% (90~305Vrms)

Power factor (Typ.)

PF > 0.95 at max. load, 115Vrms/230Vrms

Inrush current (Typ.)

Cold start, 20A max. at 110Vac / 40A max. at 230Vac

Environment

Operating

30~50 @ ambient temperature (Tambient)

EMC & Safety

Withstand voltage

I/P-O/P: 3.75KVac, I/P-FG: 1.5KVac, O/P-FG: 0.5KVac

Safety standards

EN61347-1, EN61347-2-13

EMC standards

FCC Part 15B, EN 55022 Class B regulation, CNS 14115 at max. load,230 Vac,    EN 55015 at max. load, 230Vac, EN 61000-3-2 class C

EN 61000-4-5 Level 4 (L-N : 4KV, L-PE : 4KV, N-PE : 4KV)

Cable

Input wire

IEC57(YZW) H05VV-F 1.0mm2×3C (70cm)

Output wire

UL1015 18AWG (20cm)

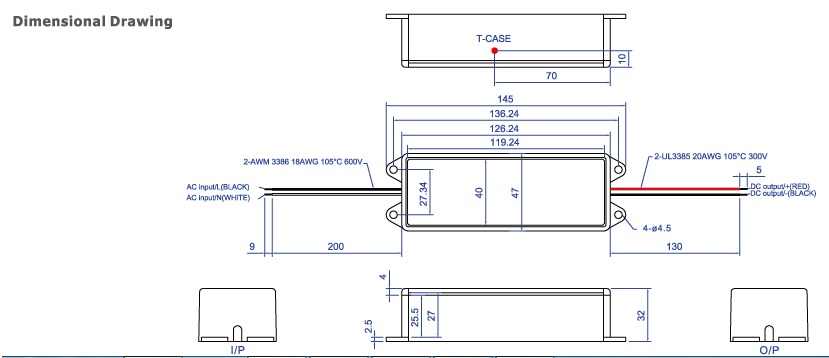

Mechanical

Dimension

244 (L) × 60.5 (W) × 44.5 (H) mm

Model Listing

Class 2 Power



Non- Class 2 Power

Model No.

Max. output power

Output

Efficiency



Model No.

Max. output power

Output

Efficiency

PC-SD38-1XYDZ

29.7W

6.3~9V/3.3A

80%



PC-SD38-7XYDZ

48W

25.2~36V/1.33A

86%

PC-SD38-2XYDZ

40W

8.4~12V/3.3A

80%



PC-SD38-8XYDZ

48W

28.9~42V/1.14A

88%

PC-SD38-3XYDZ

40W

10.5~15V/2.67A

84%



PC-SD38-AXYDZ

48W

33.0~48V/1A

88%

PC-SD38-4XYDZ

48W

14.0~20V/2.4A

85%



PC-SD38-BXYDZ

48W

37.5~54V/0.88A

88%

PC-SD38-5XYDZ

48W

16.8~24V/2A

85%



 XY: Black, aa-zz or AA-ZZ

PC-SD38-6XYDZ

48W

18.9~24V/2A

85%



 DZ: Black, 00-99, aa-zz or AA-ZZ
(market purpose,factory specified)

PC-SD38-6XYZ

48W

18.9~27V/1.78A

85%
