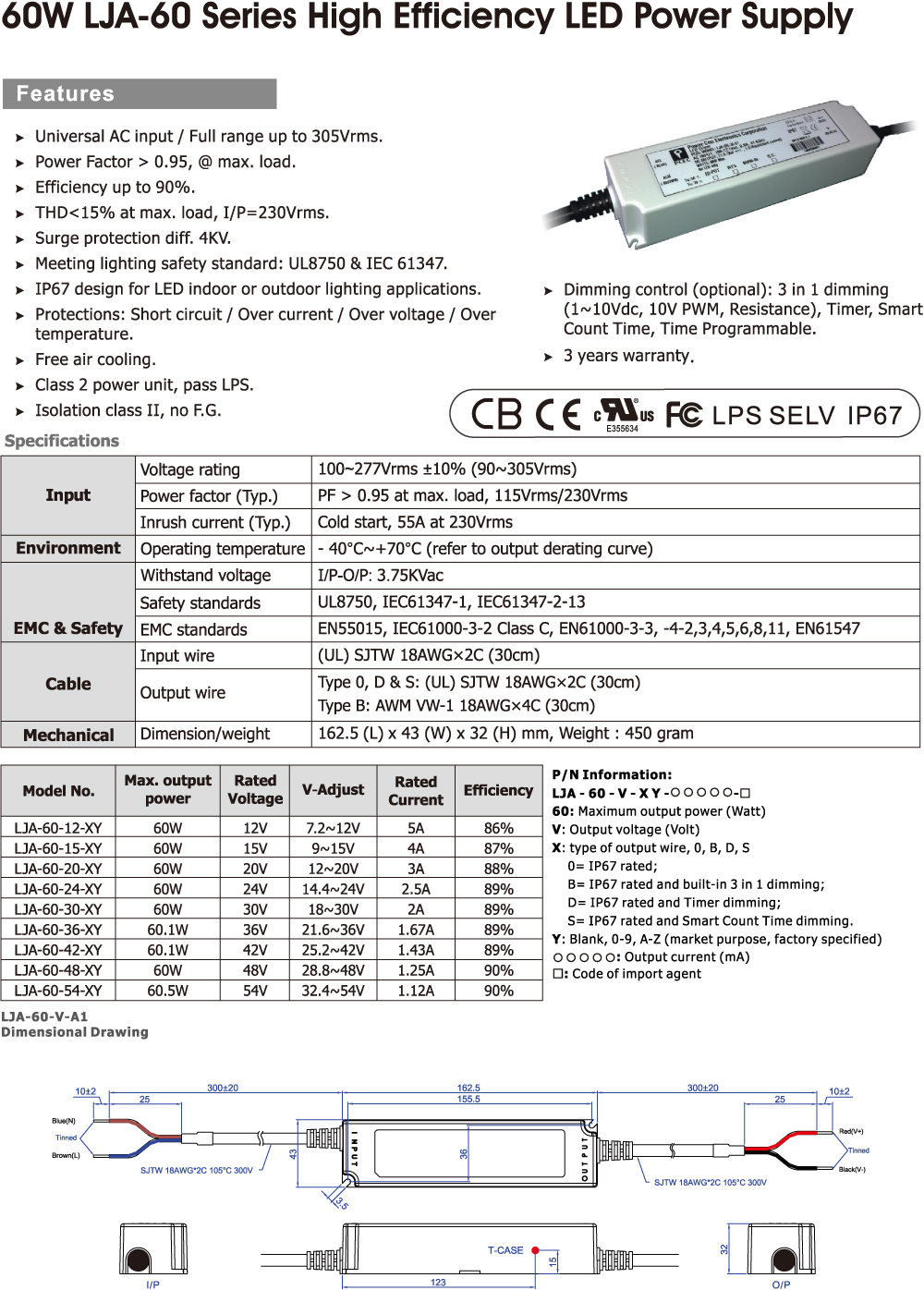

LJA Series

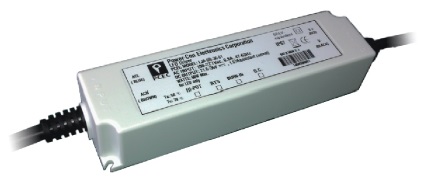

High Efficiency LED Power Supply
 |
|
 |
|
 |
|
|
|
|
|
|
|
40W LJA-40 |
|
60W LJA-60 |
|
90W LJA-90 |
|
|
|
|
|
|
|
Ø
Universal AC input / Full range up to
305Vrms. |
 |
|
Ø
Power Factor > 0.95
(@
max. load.) |
|
Ø
Efficiency up to 90%. |
|
Ø
THD<15% at max. load, I/P=230Vrms. |
Ø
Class 2 power unit,pass LPS. |
|
Ø
Surge protection common/diff. 4KV. |
Ø
Isolation class I I,no F.G. |
|
Ø
Meeting lighting safety standard: UL8750 &
IEC 61347. |
Ø
Dimming control (optional): 3 in 1 dimming
(1~10Vdc, 10V PWM, Resistance),
Timer, Smart Count Time, Time
Programmable. |
|
Ø
IP67 design for LED indoor or outdoor
lighting applications. |
Ø
3
years warranty. |
|
Ø
Protections: Short circuit / Over current /
Over voltage / Over temperature. |
|
|
Ø
Free air cooling. |
|
Specifications
|
Input |
Voltage rating |
100~277Vrms ± 10% (90~305Vrms) |
|
Power factor (Typ.) |
PF > 0.95 at max. load, 115Vrms/230Vrms |
|
Inrush current (Typ.) |
Cold start , 55A at 230Vrms |
|
Environment |
Operating temperature |
－40℃~＋70℃
(refer to output derating curve) |
|
EMC & Safety |
Withstand voltage |
I/P-O/P: 3.75KVac |
|
Safety standards |
UL8750, IEC61347-1, IEC61347-2-13 |
|
EMC standards |
EN55015, IEC61000-3-2 Class C,
EN61000-3-3, -4-2,3,4,5,6,8,11, EN61547 |
|
Cable |
Input wire |
(UL) SJTW 18AWG×2C (30cm) |
|
Output wire |
Type 0, D & S: (UL) SJTW 18AWG×2C (30cm) |
|
Type B: AWM VW-1 18 AWG×4C (30cm)
|
|
Mechanical |
Dimension/weight |

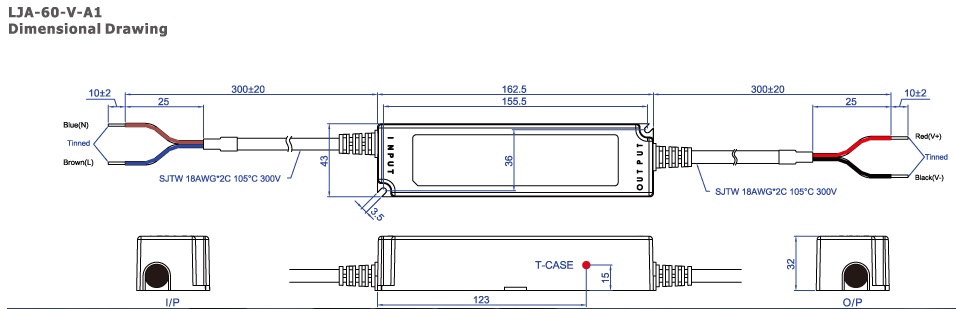

162.5 (L) × 43 (W) × 32 (H) mm,
Weight:
450 gram |
|
Model No. |
Max. output power |
Rated Voltage |
V-Adjust |
Rated Current |
Efficiency |
|
LJA-60-12-XY |
60W |
12V |
7.2~12V |
5A |
86% |
|
LJA-60-15-XY |
60W |
15V |
9~15V |
4A |
87% |
|
LJA-60-20-XY |
60W |
20V |
12~20V |
3A |
88% |
|
LJA-60-24-XY |
60W |
24V |
14.4~24V |
2.5A |
89% |
|
LJA-60-30-XY |
60W |
30V |
18~30V |
2A |
89% |
|
LJA-60-36-XY |
60.1W |
36V |
21.6~36V |
1.67A |
89% |
|
LJA-60-42-XY |
60.1W |
42V |
25.2~42V |
1.43A |
89% |
|
LJA-60-48-XY |
60W |
48V |
28.8~48V |
1.25A |
90% |
|
LJA-60-54-XY |
60.5W |
54V |
32.4~54V |
1.12A |
90% |
P/N Information:
LJA
- 60 - V - X
Y -
-
£
60:
Maximum output power (Watt)
V:
Output voltage (Volt)
X:
type of output wire, 0, B,
D, S
0= IP67 rated;
B= IP67 rated and built-in 3 in 1 dimming;
D= IP67 rated and Timer dimming;
S= IP67 rated and Smart Count Time dimming.
Y:
Blank, 0-9, A-Z
(market purpose, factory specified)
:
Output current (mA)
£:
Code of import agent
|
