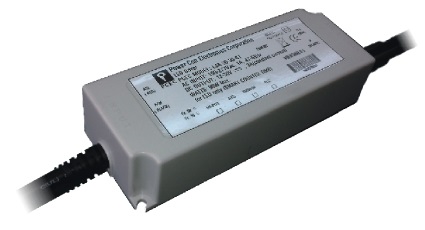

LJA Series High Efficiency LED Power Supply


40W LJA-40   60W LJA-60   90W LJA-90

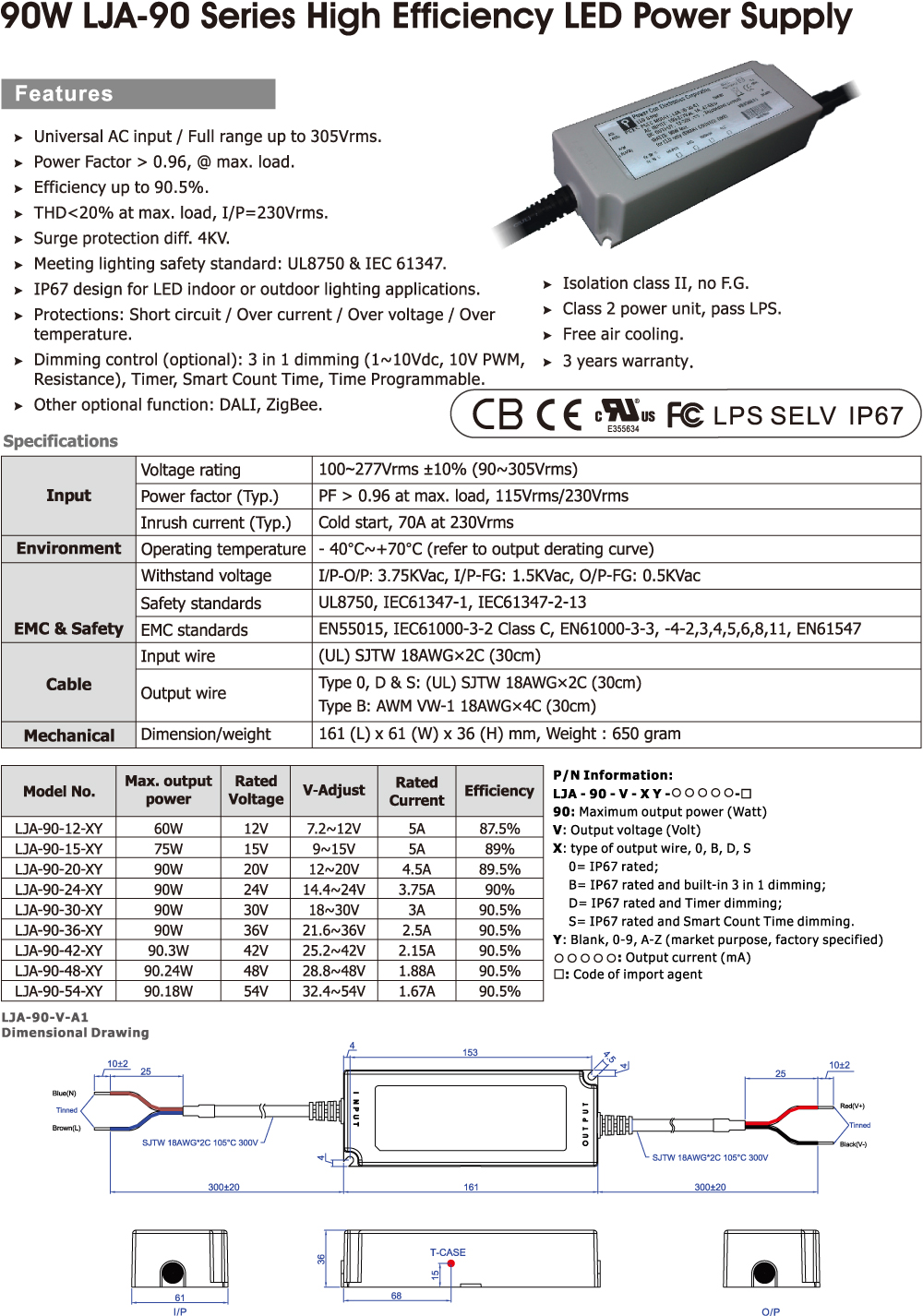

90W LJA-90 Series High Efficiency LED Power Supply
Features

Ø   Universal AC input / Full range up to 305Vrms.

Ø   Power Factor > 0.96 (@ max. load.)

Ø   Efficiency up to 90.5%.

Ø   THD<15% at max. load, I/P=230Vrms.

  Ø  Qther optional function: DALI,ZigBee.

Ø   Surge protection common/diff. 4KV.

   Ø   Isolation class I I,no F.G.

Ø   Meeting lighting safety standard: UL8750 & IEC 61347.

Ø   Class 2 power unit,pass LPS.

Ø   IP67 design for LED indoor or outdoor lighting applications.

   Ø   Free air cooling.

Ø   Protections: Short circuit / Over current / Over voltage / Over temperature.

Ø   3 years warranty.

Ø   Dimming control (optional): 3 in 1 dimming
 (1~10Vdc, 10V PWM, Resistance),
 Timer, Smart Count Time, Time
 Programmable.




Specifications

Input

Voltage rating

100~277Vrms ± 10% (90~305Vrms)

Power factor (Typ.)

PF > 0.96 at max. load, 115Vrms/230Vrms

Inrush current (Typ.)

Cold start , 70A at 230Vrms

Environment

Operating temperature

40~70 (refer to output derating curve)

EMC & Safety

Withstand voltage

I/P-O/P: 3.75KVac, I/P-FG: 1.5KVac, O/P-FG: 0.5KVac

Safety standards

UL8750, IEC61347-1, IEC61347-2-13

EMC standards

EN55015, IEC61000-3-2 Class C, EN61000-3-3, -4-2,3,4,5,6,8,11, EN61547

Cable

Input wire

(UL) SJTW 18AWG×2C (30cm)

Output wire

Type 0, D & S: (UL) SJTW 18AWG×2C (30cm)

Type B: AWM VW-1 18 AWG×4C (30cm)

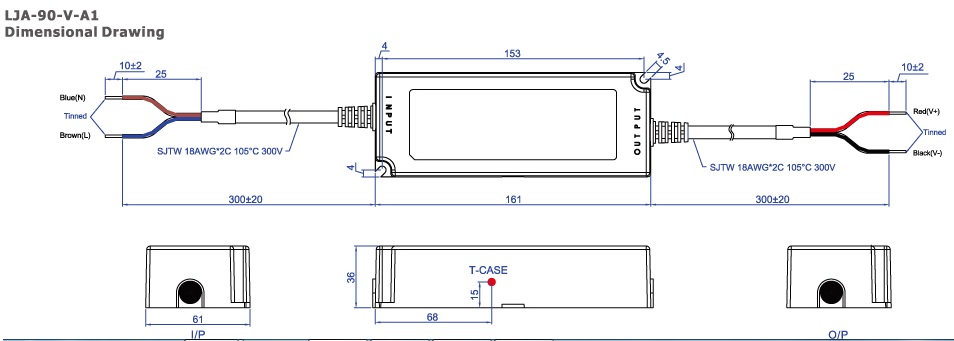

Mechanical

Dimension/weight

161 (L) × 61 (W) × 36 (H) mm, Weight: 650 gram


Model No.

Max. output power

Rated Voltage

V-Adjust

Rated Current

Efficiency

LJA-90-12-XY

60W

12V

7.2~12V

5A

87.5%

LJA-90-15-XY

75W

15V

9~15V

5A

89%

LJA-90-20-XY

90W

20V

12~20V

 4.5A

89.5%

LJA-90-24-XY

90W

24V

14.4~24V

3.75A

90%

LJA-90-30-XY

90W

30V

18~30V

3A

90.5%

LJA-90-36-XY

90W

36V

21.6~36V

 2.5A

90.5%

LJA-90-42-XY

90.3W

42V

25.2~42V

2.15A

90.5%

LJA-90-48-XY

90.24W

48V

28.8~48V

1.88A

90.5%

LJA-90-54-XY

90.18W

54V

32.4~54V

1.67A

90.5%

P/N Information:
L
JA - 90 - V - X Y -  - £
90
: Maximum output power (Watt)
V
: Output voltage (Volt)
X
: type of output wire, 0, B, D, S
0= IP67 rated;
B= IP67 rated and built-in 3 in 1 dimming;
D= IP67 rated and Timer dimming;
S= IP67 rated and Smart Count Time dimming.

Y
: Blank, 0-9, A-Z (market purpose, factory specified)

: Output current (mA)
£
: Code of import agent
