240W

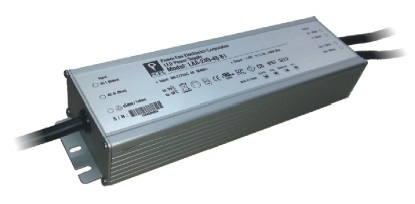

LAA-240 Series High Efficiency LED Power Supply
Features
|
Ø
Universal AC input / Full range up to
305Vrms. |
 |
|
Ø
Power Factor > 0.95
(@
max. load.) |
|
Ø
Efficiency up to 93%. |
|
Ø
THD<15% at max. load, I/P=230Vrms. |
Ø
Dimming control (optional): 3 in 1 dimming
(1~10Vdc, 10V PWM, Resistance),
Timer, Smart Count Time, Time
Programmable. |
|
Ø
Surge protection common/diff. 4/4KV. |
Ø
Other optional function: DALI. |
|
Ø
Meeting lighting safety standard: UL8750 &
IEC 61347. |
Ø
5 years warranty. |
|
Ø
IP65 / IP67 design for LED indoor or outdoor
lighting applications. |
|
|
Ø
Protections: Short circuit / Over current /
Over voltage / Over temperature. |
|
|
Ø
Free air cooling. |
|
|
Ø
Comply with EU ErP |
|
Specifications
|
Input |
Voltage rating |
100~277Vrms ± 10% (90~305Vrms) |
|
Power factor (Typ.) |
PF > 0.95 at max. load, 115Vrms/230Vrms |
|
Inrush current (Typ.) |
Cold start, 75A at 230Vrms |
|
Environment |
Operating temperature |
－40℃~＋70℃
(refer to output derating curve) |
|
EMC & Safety |
Withstand voltage |
I/P-O/P: 4KVac, I/P-FG:
1.6KVac, O/P-FG:
0.5KVac |
|
Safety standards |
UL8750, CSA C22.2 No.60950-1-07,
IEC61347-1, IEC61347-2-13,
EN62384,
independent IP65 or IP67, design refer to UL60950-1, PSE省令別表第八 |
|
EMC standards |
FCC part 15, EN55015, IEC61000-3-2 Class
C, EN61000-3-2, -3-3, -4-2,3,4,5,6,8,11,
EN61547, IEC55024, IEC 62493:2009 |
|
Cable |
Input wire |
(UL) SJTW 16AWG×3C (30cm), (PSE) HVCTF
1.25mm2×3C (30cm) |
|
Output wire |
Type 0, A, D & S: (UL) SJTW 14AWG×2C
(32cm), (PSE) HVCTF 2.0mm2
×2C (32cm) (32cm) |
|
Type B, C: (UL) SJTW 14 AWG×2C (32cm) +
SJTW 18 AWG×2C (32cm) |
|

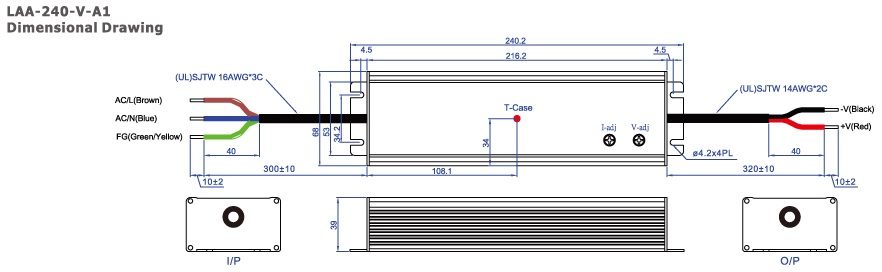

Mechanical |
Dimension/weight |
240.2 (L) × 68 (W) × 39 (H) mm,
Weight: 1300
gram |
|
Model |
Constant Voltage Mode |
Constant Current Mode |
Eff. |
|
Voltage |
V-Adjust |
Current |
I-Adjust |
Voltage |
|
LAA-240-12-XY |
12V |
11.2~12.8V |
0~16A |
8~16A |
6~12V |
90.0% |
|
LAA-240-15-XY |
15V |
14~16V |
0~15A |
7.5~15A |
7.5~15V |
90.0% |
|
LAA-240-20-XY |
20V |
18.6~21.4V |
0~12A |
6~12A |
10~20V |
92.0% |
|
LAA-240-24-XY |
24V |
22.4~25.6V |
0~10A |
5~10A |
12~24V |
93.0% |
|
LAA-240-30-XY |
30V |
28~32V |
0~8A |
4~8A |
15~30V |
93.0% |
|
LAA-240-36-XY |
36V |
33.5~38.5V |
0~6.7A |
3.3~6.7A |
18~36V |
93.0% |
|
LAA-240-42-XY |
42V |
39~45V |
0~5.72A |
2.86~5.72A |
21~42V |
93.0% |
|
LAA-240-48-XY |
48V |
44.8~51.2V |
0~5A |
2.5~5A |
24~48V |
93.0% |
|
LAA-240-54-XY |
54V |
50~57V |
0~4.45A |
2.23~4.45A |
27~54V |
94.0% |
P/N Information:
LAA - 240 - V - X
Y -
-
£
240:
Maximum output power (Watt)
V:
Output voltage (Volt)
X:
type of output wire, 0, A, B,
C
, D, S
0= IP67 rated;
A= IP65 rated (V-Adjustable and I-Adjustable);
B= IP67 rated and built-in 3 in 1 dimming;
C= IP65 rated (I-Adj. and built-in 3 in 1
dimming);
D= IP67 rated and Timer dimming;
S= IP67 rated and Smart Count Time dimming.
Y:
Blank, 0-9, A-Z
(market purpose, factory specified)
:
Output current (mA)
£:
Code of import agent
|
