LAA Series High Efficiency LED Power Supply


40W LAA-40   60W LAA-60   80W LAA-80   100W LAA-100   120W LAA-120   150W LAA-150

185W LAA-185   240W LAA-240   320W LAA-320

40W LAA-40 Series High Efficiency LED Power Supply

Features

Universal AC input / Full range up to 305Vrms.

 Power Factor > 0.95 (@ max. load.)

 Efficiency up to 89.5%.

 THD<15% at max. load, I/P=230Vrms.

             Free air cooling.

 Surge protection common/diff. 4/4KV.

            Comply with EU ErP.

 Meeting lighting safety standard: UL8750 & IEC 61347.

         Dimming control (optional): 3 in 1 dimming (1~10Vdc, 10V PWM, Resistance), Timer, Smart Count Time, Time Programmable.

 IP65 / IP67 design for LED indoor or outdoor lighting applications.

              Other optional function: DALI.

 Protections: Short circuit / Over current / Over voltage / Over temperature.

              5 years warranty.

Specifications

Input

Voltage rating

100~277Vrms ± 10% (90~305Vrms)

Power factor (Typ.)

PF > 0.95 at max. load, 115Vrms/230Vrms

Inrush current (Typ.)

Cold start, 50A at 230Vrms

Environment

Operating temperature

40~70 (refer to output derating curve)

EMC & Safety

Withstand voltage

I/P-O/P: 3.75KVac, I/P-FG: 1.5KVac, O/P-FG: 0.5KVac

Safety standards

UL8750, CSA C22.2 No.60950-1-07, IEC61347-1, IEC61347-2-13, independent IP65 or IP67, design refer to UL60950-1

EMC standards

FCC part 15, EN55015, IEC61000-3-2 Class C, EN61000-3-2, -3-3, -4-2,3,4,5,6,8,11, EN61547, IEC55024, IEC 62493:2009

Cable

Input wire

(UL) SJTW 18AWG×3C (30cm)

Output wire

Type 0, A, D & S: (UL) SJTW 18 AWG×2C (30cm)

Type B, C: (UL) SJTW 18 AWG×2C (30cm) + SJTW 18 AWG×2C (30cm)

Mechanical

Dimension/weight

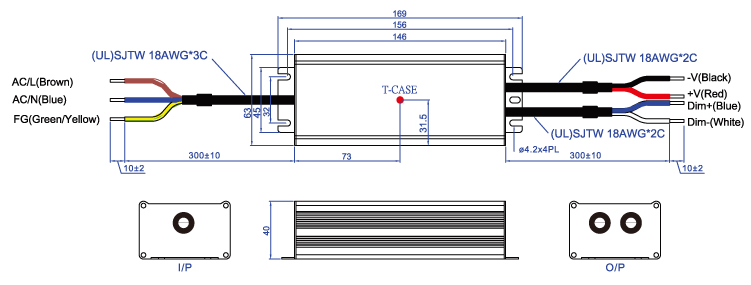

169 (L) × 63 (W) × 40 (H) mm, weight: 740 gram

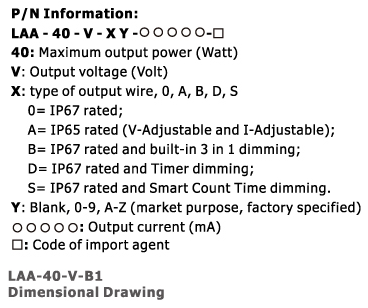

Model

Constant Voltage Mode

Constant Current Mode

Eff.

Voltage

V-Adjust

Current

I-Adjust

Voltage

LAA-40-12-XY

12V

10.8~13.5V

0~3.33A

2~3.33A

7.2~12V

86.5%

LAA-40-15-XY

15V

13.5~17V

0~2.67A

1.6~2.67A

9~15V

86.5%

LAA-40-20-XY

20V

17~22V

0~2A

1.2~2A

12~20V

88%

LAA-40-24-XY

24V

22~27V

0~1.67A

1~1.67A

14.4~24V

88%

LAA-40-30-XY

30V

27~33V

0~1.34A

0.8~1.34A

18~30V

88.5%

LAA-40-36-XY

36V

33~40V

0~1.12A

0.67~1.12A

21.6~36V

88.5%

LAA-40-42-XY

42V

38~46V

0~0.96A

0.58~0.96A

25.2~42V

88.5%

LAA-40-48-XY

48V

43~53V

0~0.84A

0.5~0.84A

28.8~48V

89.5%

LAA-40-54-XY

54V

49~58V

0~0.75A

0.45~0.75A

32.4~54V

89.5%

















FITTING

RELATED
