LAA Series High Efficiency LED Power Supply


40W LAA-40   60W LAA-60   80W LAA-80   100W LAA-100   120W LAA-120   150W LAA-150

185W LAA-185   240W LAA-240   320W LAA-320

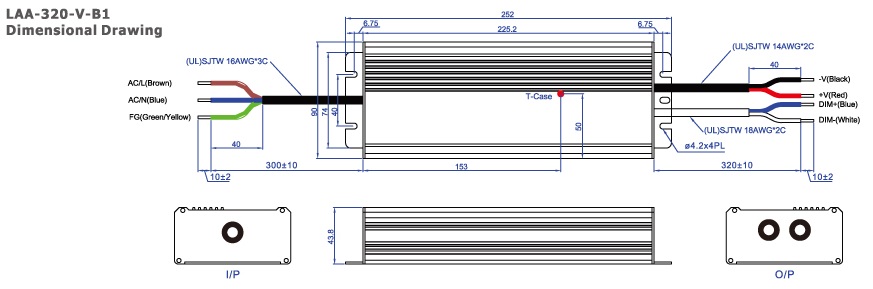

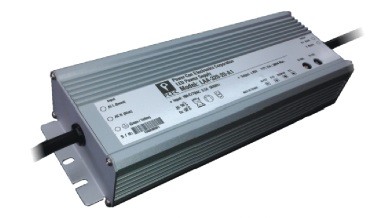

320W LAA-320 Series High Efficiency LED Power Supply

Features

Ø   Universal AC input / Full range up to 305Vrms.

Ø   Power Factor > 0.95 (@ max. load.)

Ø   Efficiency up to 94%.

Ø   THD<15% at max. load, I/P=230Vrms.

Ø   Dimming control (optional): 3 in 1 dimming
 (1~10Vdc, 10V PWM, Resistance),
 Timer, Smart Count Time, Time
 Programmable.

Ø   Surge protection common/diff. 4/4KV.

 Ø   Other optional function: DALI.

Ø   Meeting lighting safety standard: UL8750 & IEC 61347.

Ø   5 years warranty.

Ø   IP65 / IP67 design for LED indoor or outdoor lighting applications.



Ø   Protections: Short circuit / Over current / Over voltage / Over temperature.



Ø   Free air cooling.



Ø   Comply with EU ErP




Specifications

Input

Voltage rating

100~277Vrms ± 10% (90~305Vrms)

Power factor (Typ.)

PF > 0.95 at max. load, 115Vrms/230Vrms

Inrush current (Typ.)

Cold start 70A (twidth = 1010 μs measured at 50% Ipeak) at 230Vrms

Environment

Operating temperature

40~70 (refer to output derating curve)

EMC & Safety

Withstand voltage

I/P-O/P: 3.75KVac, I/P-FG: 1.5KVac, O/P-FG: 0.5KVac

Safety standards

UL8750, CSA C22.2 No.60950-1-07, IEC61347-1, IEC61347-2-13, independent IP65

or IP67, design refer to UL60950-1

EMC standards

FCC part 15, EN55015, IEC61000-3-2 Class C, EN61000-3-2, -3-3, -4-2,3,4,5,6,8,11, EN61547, IEC55024, IEC 62493:2009

Cable

Input wire

(UL) SJTW 16AWG×3C (30cm), (PSE) HVCTF 1.25mm2×3C (30cm)

Output wire

Type 0, A, D & S: (UL) SJTW 14AWG×2C (32cm), (PSE) HVCTF 2.0mm2 ×2C (32cm) (32cm)

Type B, C: (UL) SJTW 14 AWG×2C (32cm) + SJTW 18 AWG×2C (32cm)

Mechanical

Dimension/weight

252 (L) × 90 (W) × 43.8 (H) mm, Weight: 1880 gram



Model

Constant Voltage Mode

Constant Current Mode

Eff.

Voltage

V-Adjust

Current

I-Adjust

Voltage

LAA-320-12-XY

12V

10.8~13.5V

0~22A

11~22A

6~12V

90.0%

LAA-320-15-XY

15V

13.5~17V

0~19A

9.5~19A

7.5~15V

91.0%

LAA-320-20-XY

20V

17~22V

0~15A

7.5~15A

10~20V

92.0%

LAA-320-24-XY

24V

22~27V

0~13.3A

6.67~13.34A

12~24V

93.0%

LAA-320-30-XY

30V

27~33V

0~10.7A

5.35~10.7A

16~30V

93.0%

LAA-320-36-XY

36V

33~40V

0~8.9A

4.45~8.9A

18~36V

93.0%

LAA-320-42-XY

42V

38~46V

0~7.65A

3.8~7.65A

21~42V

94.0%

LAA-320-48-XY

48V

43~53V

0~6.7A

3.35~6.7A

24~48V

94.0%

LAA-320-54-XY

54V

49~58V

0~5.95A

2.97~5.95A

27~54V

94.0%

P/N Information:
LAA - 320 - V - X
Y -  - £
320
: Maximum output power (Watt)
V
: Output voltage (Volt)
X
: type of output wire, 0, A, B, C , D, S
0= IP67 rated;
A= IP65 rated (V-Adjustable and I-Adjustable);
B= IP67 rated and built-in 3 in 1 dimming;

C= IP65 rated (I-Adj. and built-in 3 in 1 dimming);

D= IP67 rated and Timer dimming;
S= IP67 rated and Smart Count Time dimming.

Y
: Blank, 0-9, A-Z (market purpose, factory specified)

: Output current (mA)
£
: Code of import agent
